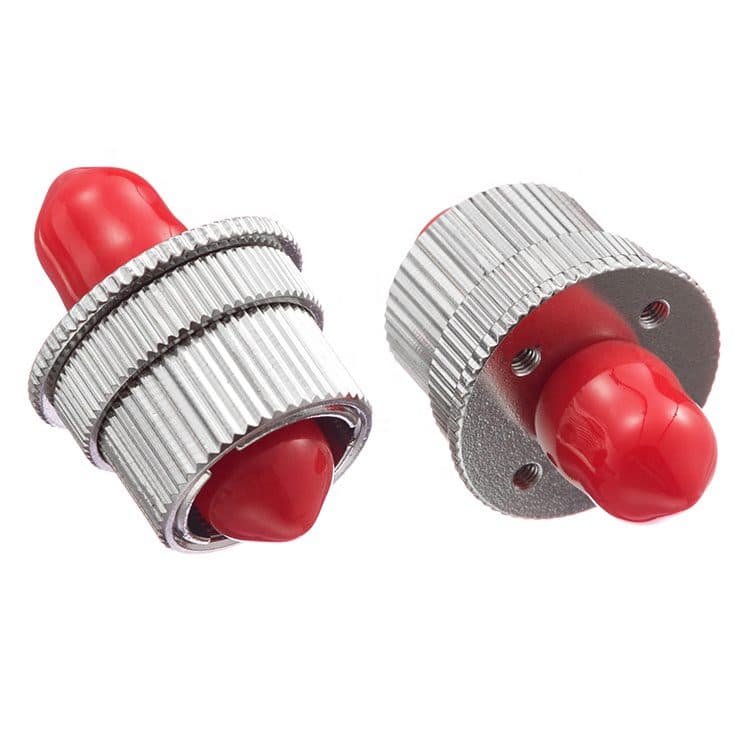

FC Variable Fiber Optic Attenuator
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Precision Optical Power Management for FC APC Networks
Telhua's FC Variable Fiber Optic Attenuator delivers exact optical power control in high-density FC APC connector environments. Engineered for telecommunications, data centers, and enterprise networks, this attenuator prevents receiver saturation and signal distortion while maintaining optimal performance across your fiber infrastructure.
Solve Critical B2B Network Challenges
Network engineers face persistent challenges with signal management in dense fiber deployments. Our variable attenuator addresses these pain points directly:
- Density Optimization: Compact design preserves valuable rack space while enabling precise power adjustment in congested FC APC patch panels
- Reliability Assurance: Consistent attenuation values across temperature variations and mechanical stress prevent network downtime
- Installation Efficiency: Tool-free adjustment and clear attenuation scales reduce deployment time by up to 40% compared to fixed alternatives
- Performance Protection: Prevents photodetector damage from excessive optical power in sensitive FC APC connector applications
Telhua Engineer's Tip: Maximizing FC APC Connector Performance
For optimal performance with FC APC connectors, always clean both the attenuator and connector interfaces before installation. Use the variable adjustment to set attenuation 0.5-1.0 dB higher than your target value, then fine-tune after 24 hours of operation to account for initial connector settling. This compensates for the angled polish characteristic of APC connectors and ensures long-term attenuation stability within ±0.2 dB.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | FC/APC |
| Attenuation Range | 0.5 dB to 20 dB |
| Adjustment Resolution | 0.1 dB increments |
| Insertion Loss | < 0.5 dB |
| Return Loss | > 55 dB |
| Wavelength Range | 1260 nm to 1625 nm |
| Operating Temperature | -40°C to +75°C |
| Power Handling | 500 mW maximum |
| Durability | > 500 cycles |
| Compliance Standards | IEC 61753-1, TIA/EIA-455-34, RoHS compliant |
Industry Compliance & Quality Assurance
Manufactured to IEC 61753-1 performance standards and TIA/EIA-455-34 test methods, this variable attenuator meets rigorous industry requirements for optical performance and mechanical reliability. RoHS compliance ensures environmental responsibility without compromising material durability or optical characteristics.
