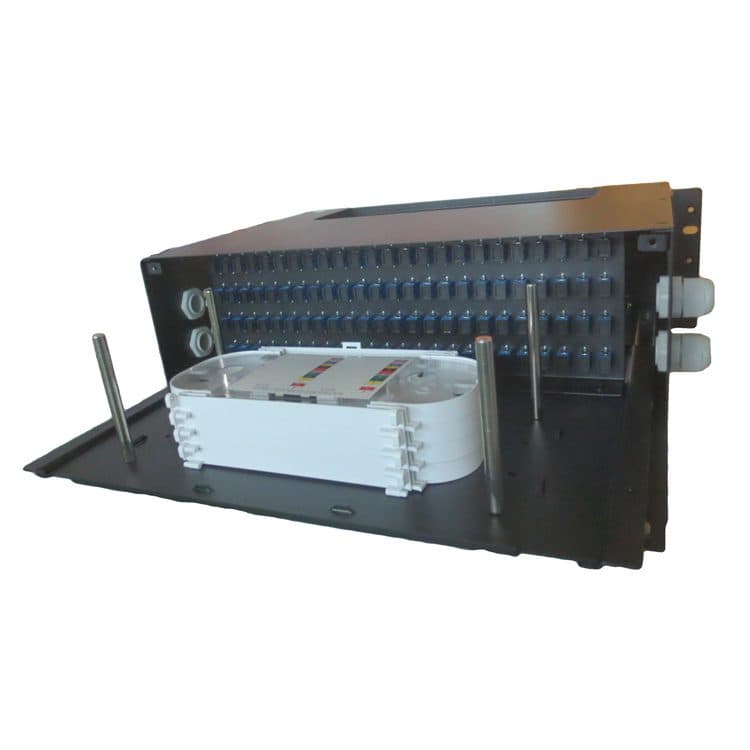

Egypt 19inch 3U 96 ports sc adapter sliding patch panel with glass door
Product Parameters
- Drawer Open Way:Sliding
- Material:Metal
- No. of U:3U
High-Density 96-Port SC Adapter Patch Panel
Telhua's Egypt 19-inch 3U sliding patch panel is engineered for network professionals who demand maximum port density without compromising reliability or accessibility. This unit provides a robust, organized termination point for 96 SC duplex adapters in a compact 3U form factor, making it ideal for data centers, telecom central offices, and enterprise network racks where space optimization is critical.
Engineered for B2B Network Efficiency
B2B network managers face constant pressure to increase capacity while controlling costs and minimizing downtime. Traditional patch panels can create installation bottlenecks, cable management headaches, and accessibility issues during maintenance. The Egypt 96-port panel addresses these challenges with a sliding tray design that provides full front and rear access without disconnecting cables, significantly reducing the time required for moves, adds, and changes. The tempered glass door offers physical protection while maintaining visibility of port status and labels.
Telhua Engineer's Tip: Preserving Optical Performance
For optimal signal integrity in high-density applications, pay careful attention to bend radius management behind the panel. Use the integrated cable management bars to maintain a minimum bend radius of 30mm for single-mode fibers and 15mm for multimode fibers. This prevents microbending losses that can accumulate across 96 channels, ensuring consistent optical performance across all ports. Proper slack storage in the rear compartment also reduces stress on connectors during the sliding mechanism operation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | Egypt 3U 96-port SC |
| Form Factor | 19-inch rack mount, 3U height (133.35mm) |
| Port Configuration | 96 ports (48 SC duplex adapters) |
| Adapter Type | SC UPC duplex (simplex available) |
| Panel Mechanism | Sliding tray with positive locking |
| Front Access | Tempered glass door with key lock |
| Cable Management | Integrated front/rear cable routing bars |
| Material Construction | Cold-rolled steel, powder-coated finish |
| Compliance Standards | IEC 61754-4, TIA/EIA-568, RoHS compliant |
| Operating Temperature | -10°C to +60°C |
| Weight | 8.2 kg (18.1 lbs) |
Standards Compliance & Quality Assurance
Every Egypt patch panel undergoes rigorous testing to ensure compliance with international standards. The SC adapters meet IEC 61754-4 specifications for dimensional accuracy and mating performance. The rack mounting and overall construction adhere to TIA/EIA-568 requirements for telecommunications infrastructure. All materials are RoHS compliant, containing no restricted hazardous substances. Telhua's quality control process includes insertion loss testing of every adapter port to guarantee performance below 0.2dB typical.
