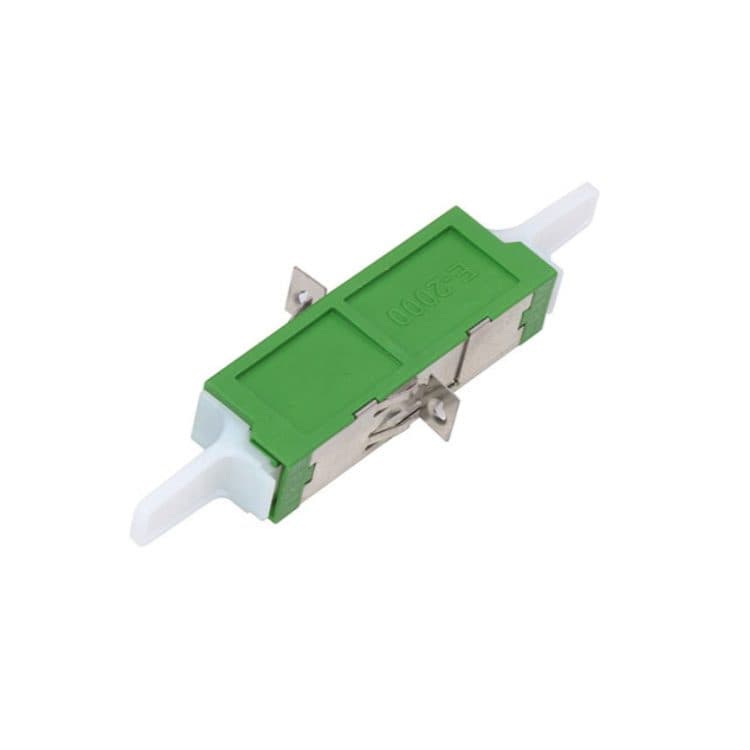

E2000 APC Fiber Optic Adapter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density E2000 APC Fiber Optic Adapter
Telhua's E2000 APC Fiber Optic Adapter delivers exceptional performance for demanding B2B network environments. Engineered to maximize port density while maintaining superior signal integrity, this adapter addresses critical infrastructure challenges where space optimization and reliable connectivity are paramount. The precision 8° angled physical contact (APC) polish minimizes back reflection to below -65dB, ensuring stable transmission in high-speed data, telecommunications, and enterprise applications.
Key Features for Network Professionals
- Ultra-High Density Design: Compact form factor enables maximum port utilization in patch panels, enclosures, and distribution frames, reducing physical footprint by up to 40% compared to standard adapters.
- Enhanced Reliability: Corrosion-resistant zirconia ceramic ferrule with stainless steel housing withstands repeated mating cycles while maintaining precise alignment for consistent low insertion loss.
- Rapid Installation: Tool-less snap-in mounting simplifies deployment and reconfiguration, reducing installation time by approximately 30% compared to threaded alternatives.
- Universal Compatibility: Seamlessly interfaces with all E2000 APC connectors regardless of manufacturer, ensuring interoperability in multi-vendor environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | E2000/APC to E2000/APC |
| Insertion Loss | ≤ 0.2 dB typical, ≤ 0.3 dB maximum |
| Return Loss | ≥ 65 dB (APC polish) |
| Operating Temperature | -40°C to +85°C |
| Durability | > 500 mating cycles |
| Flammability Rating | UL94 V-0 |
| Standards Compliance | IEC 61754-15, TIA/EIA-604-18, RoHS compliant |
Telhua Engineer's Tip
For optimal performance in high-density installations, maintain a minimum bend radius of 30mm when routing cables through adjacent adapter ports. This prevents microbend-induced attenuation that can accumulate across densely populated panels. Our proprietary ferrule alignment mechanism incorporates a 0.5μm precision tolerance that compensates for thermal expansion variations, ensuring stable performance across the full operating temperature range without requiring seasonal readjustments.
Standards and Compliance
Telhua's E2000 APC Fiber Optic Adapter meets or exceeds international standards including IEC 61754-15 for fiber optic connector interfaces, TIA/EIA-604-18 for performance requirements, and RoHS directives for environmental safety. Each unit undergoes rigorous testing for insertion loss, return loss, and mechanical durability to ensure consistent performance in mission-critical applications.
