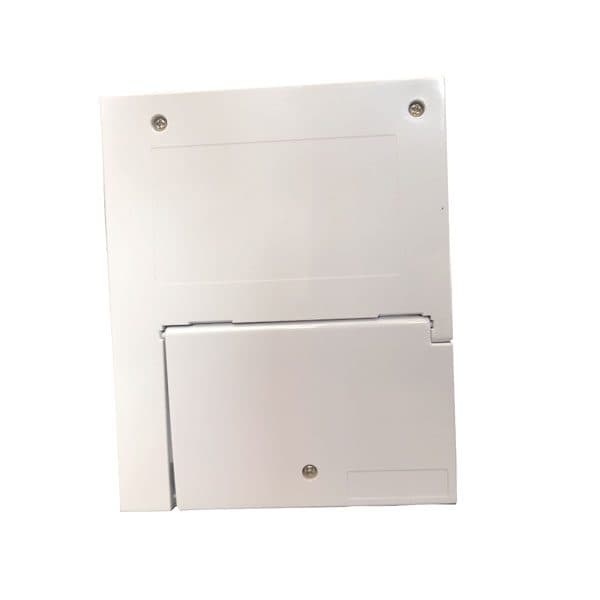

CDP-8 Indoor 8 Port Fiber Optic Termination Box

Product Overview

The Telhua CDP-8 is a premium indoor fiber optic termination box designed to streamline your network infrastructure. With 8 ports, it offers optimal density for space-constrained installations while ensuring superior protection and organization for your fiber connections.

Key Features & Benefits

Addressing Your Critical Pain Points

Feature	Benefit	Pain Point Solved
High-Density 8-Port Design	Maximizes port count in minimal rack or wall space.	Eliminates clutter and saves valuable real estate in data centers and telecom rooms.
Robust, Sealed Construction	Protects fibers from dust, moisture, and physical damage.	Reduces network downtime and maintenance costs caused by environmental factors.
Tool-Less, Snap-In Adapter Plates	Enables rapid deployment and reconfiguration.	Cuts installation time by up to 50%, accelerating project timelines.
Clear Labeling & Cable Management	Simplifies identification and maintenance.	Prevents errors during troubleshooting and upgrades, enhancing operational efficiency.

Technical Specifications

Specification	Detail
Port Configuration	8 x SC/LC/UPC or APC adapters (customizable)
Dimensions (H x W x D)	1U rack-mountable, 44mm x 482mm x 210mm
Operating Temperature	-40°C to +85°C
Insertion Loss	< 0.2 dB
Return Loss	> 50 dB (UPC), > 60 dB (APC)
Compliance Standards	IEC 61753-1, TIA/EIA-568, RoHS

Telhua Engineer's Tip

For Optimal Bend Radius Management: When routing fibers inside the CDP-8, use the integrated loop organizers to maintain a bend radius greater than 30mm. This prevents macro-bending losses that can degrade signal integrity over long distances. Pre-terminated pigtails can reduce installation time by 30% compared to field termination.

Applications

Data Center Main Distribution Areas (MDA)
Enterprise Network Telecom Rooms
FTTH (Fiber to the Home) Access Points
Mobile Backhaul Cabinets
Security & Surveillance System Hubs

Why Choose Telhua?

With over 15 years of optical engineering expertise, Telhua designs products that meet the rigorous demands of global B2B clients. Our CDP-8 is manufactured with precision-grade components and subjected to 100% quality testing, ensuring every unit delivers the reliability your network depends on.
