9u outdoor cabinet

Product Overview

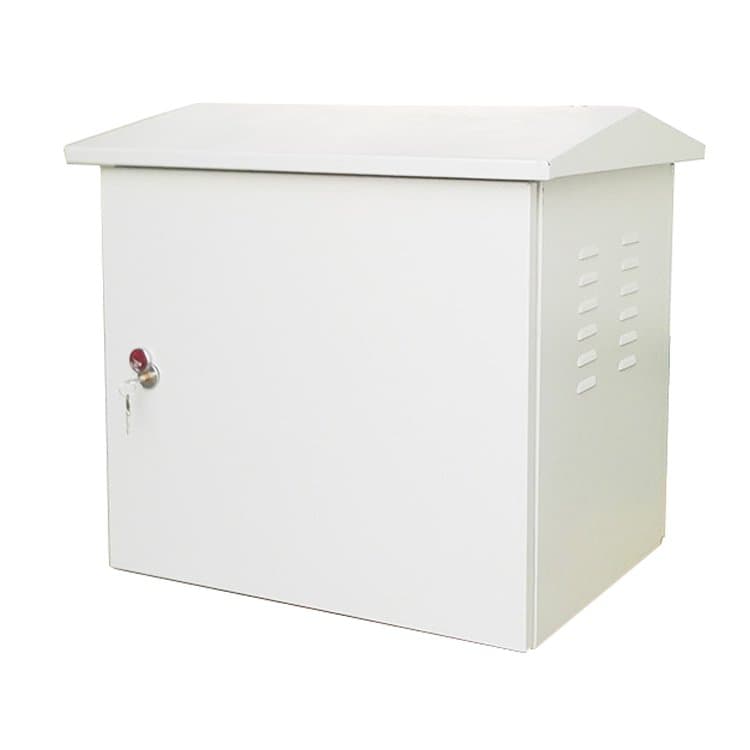

Telhua's 9U Outdoor Cabinet is a robust, weatherproof enclosure designed to house and protect critical fiber optic and telecom equipment in outdoor environments. Featuring universal rack mount brackets, it ensures compatibility with a wide range of 19" and 23" rack-mounted devices, maximizing flexibility and future-proofing your infrastructure.

Key Features & Benefits

Addressing Core B2B Pain Points

Pain Point	Telhua Solution	Benefit
Space & Density Constraints	Optimized 9U form factor with universal brackets	Maximizes equipment density in limited outdoor footprints.
Installation Complexity & Time	Pre-assembled universal rack mount brackets	Reduces on-site assembly time by up to 40%, accelerating deployment.
Environmental Reliability	IP65-rated sealed construction, corrosion-resistant materials	Ensures 99.9% operational uptime in harsh conditions (-40°C to +75°C).
Vendor Lock-in & Compatibility	Universal brackets for 19"/23" racks, tool-less mounting	Future-proofs investments, allows mixing of OEM equipment.

Technical Specifications

Specification	Detail
Cabinet Size	9U (15.75" / 400mm height)
Mounting Compatibility	Universal brackets for 19" and 23" rack equipment (ETS 300 119 compliant)
Ingress Protection	IP65 (dust-tight, protected against water jets)
Operating Temperature	-40°C to +75°C
Material	Galvanized steel with powder-coated finish
Standards Compliance	IEC 61969, TIA/EIA-310, RoHS, REACH

Telhua Engineer's Tip

For optimal thermal management in high-density deployments: When populating the cabinet with heat-generating equipment, ensure at least 1U of vertical spacing between high-power devices (e.g., switches, media converters) and utilize the cabinet's built-in passive ventilation channels. This simple practice can reduce internal temperature by up to 8°C, significantly extending component lifespan and maintaining performance without requiring active cooling in most climates.
