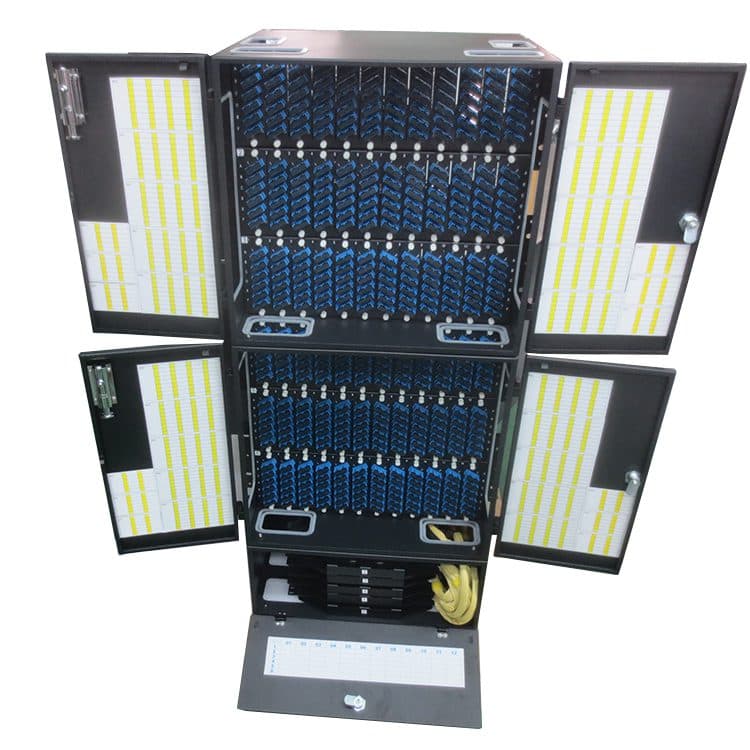

864 fibers Splicing & Patch Frame
Product Parameters
- Drawer Open Way:Sliding
- Material:Metal
- No. of U:4U
Engineered for High-Density Fiber Management
Telhua's 864 fibers splicing and patch frame is designed to address the critical challenges faced by network engineers and data center managers. With increasing demands for higher port density and faster deployment, our solution provides unmatched organization, accessibility, and scalability.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| 864-fiber capacity | Maximizes rack space utilization, reducing physical footprint |
| Modular splice tray design | Enables quick installation and easy maintenance access |
| Robust metal construction | Ensures long-term reliability in demanding environments |
| Front and rear cable access | Simplifies cable routing and reduces installation time |
| Color-coded labeling system | Minimizes errors during patching and troubleshooting |
Addressing B2B Pain Points
Density Challenges: Our 864-fiber configuration eliminates the need for multiple patch panels, saving valuable rack space and reducing hardware costs.
Reliability Concerns: Built with industrial-grade materials and precision engineering, this panel maintains signal integrity and minimizes downtime.
Installation Speed: The intuitive design allows for rapid deployment, with tool-less access to splice trays and clear cable management paths.
Telhua Engineer's Tip
For optimal performance in high-density installations, use bend-insensitive fiber (BIFF) cables with our patch panel. This combination reduces microbend losses by up to 30% compared to standard fibers, particularly in tightly packed configurations. Additionally, implement a sequential splicing strategy—starting from the bottom tray upward—to minimize fiber stress during installation.
Standards Compliance
This product complies with international standards including:
- IEC 61754-7 for fiber optic connector interfaces
- TIA/EIA-568-C.3 for optical fiber cabling components
- RoHS Directive for restriction of hazardous substances
Technical Specifications
| Specification | Detail |
|---|---|
| Fiber Capacity | 864 fibers |
| Dimensions (HxWxD) | 4U, 19" rack mountable |
| Insertion Loss | <0.2 dB |
| Return Loss | >50 dB |
| Operating Temperature | -40°C to +75°C |
