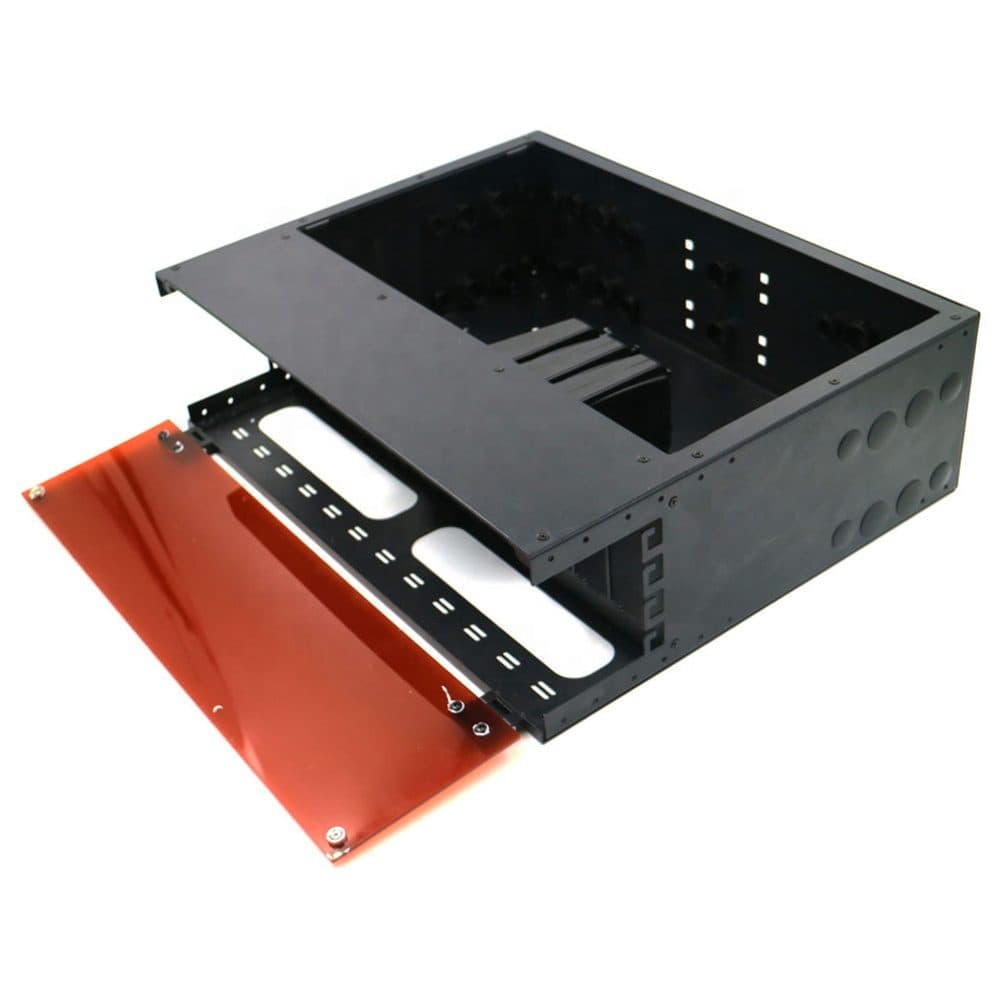

4U MPO/MTP ODF Rock Mount Fiber Optic Patch Panel with 24 Core Cassette

Product Overview

Telhua's 4U MPO/MTP ODF Rock Mount Fiber Optic Patch Panel is designed to address the critical challenges of modern fiber infrastructure. This 24-port patch panel delivers exceptional port density, robust reliability, and streamlined installation to optimize your network's performance and scalability.

Key Features & Benefits

Solve Your B2B Network Pain Points

Pain Point	Telhua Solution	Benefit
Limited Rack Space & Density	4U rock mount design with 24 MPO/MTP ports	Maximizes port density in minimal rack space, reducing footprint and costs.
Network Downtime & Reliability Concerns	High-precision connectors and robust construction	Ensures stable, low-loss connections, minimizing signal degradation and downtime.
Complex, Time-Consuming Installation	Pre-loaded 24-core cassette and tool-less design	Accelerates deployment, reduces labor costs, and simplifies maintenance.
Future-Proofing & Scalability	Modular cassette system and MPO/MTP compatibility	Easily scales with network growth and supports high-speed applications (40G/100G+).

Technical Specifications

Specification	Detail
Product Type	4U MPO/MTP ODF Rock Mount Fiber Optic Patch Panel
Port Configuration	24 ports (MPO/MTP connectors)
Cassette	24-core MPO/MTP cassette, pre-loaded
Mounting	Rock mount (19-inch rack compatible)
Insertion Loss	< 0.3 dB (typical)
Return Loss	> 50 dB (PC), > 60 dB (APC)
Operating Temperature	-40°C to +75°C
Compliance	IEC, TIA/EIA, RoHS

Telhua Engineer's Tip

Optimizing MPO Polarity for Error-Free Deployment: When deploying this 24-port MPO patch panel, ensure correct polarity alignment (Type A, B, or C) across your network to prevent connectivity issues. Use our pre-terminated cassettes with clear labeling to maintain consistency. For high-density setups, implement a systematic labeling scheme (e.g., color-coded or numbered tags) on each MPO trunk to streamline troubleshooting and reduce installation errors by up to 30%.

Applications

Data Centers (high-density fiber distribution)
Enterprise Networks (server rooms, telecom closets)
Cloud Infrastructure (scalable connectivity solutions)
FTTx Deployments (fiber-to-the-x applications)

Why Choose Telhua?

Telhua combines over 15 years of fiber optic expertise with rigorous quality control. Our patch panels are manufactured to exceed IEC, TIA/EIA, and RoHS standards, ensuring durability and performance. We support global B2B clients with customized solutions and reliable supply chains.
