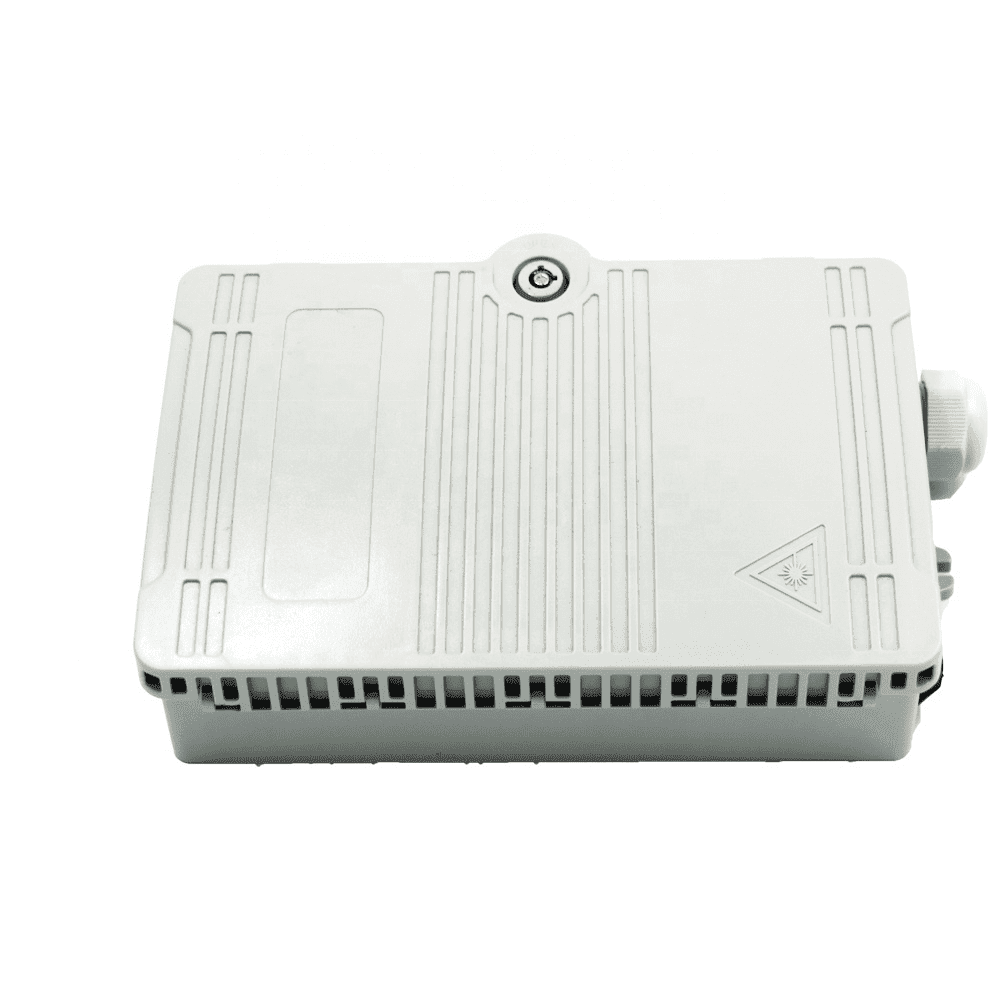

4 port outdoor fiber optic distribution unit
Product Parameters
- Indoor / Outdoor:Outdoor
- Material:Plastic
- Lockable:Yes
- Outdoor Connector:No
Product Overview
Telhua's 4 Port Outdoor Fiber Optic Distribution Unit is engineered for demanding outdoor environments, providing secure termination, splicing, and distribution of fiber optic cables. Designed to maximize port density while ensuring long-term reliability, this unit simplifies network expansions and maintenance.
Key Features
- High Port Density: Accommodates up to 4 fibers in a compact, space-saving design.
- Weatherproof Construction: IP67-rated enclosure protects against dust, moisture, and extreme temperatures.
- Quick Installation: Tool-less access and pre-installed adapters reduce deployment time by up to 40%.
- Enhanced Reliability: Robust materials and secure locking mechanism prevent signal degradation.
- Flexible Mounting: Compatible with pole, wall, or strand mounting options.
Technical Specifications
| Specification | Details |
|---|---|
| Port Capacity | 4 ports (SC/APC or LC/UPC adapters) |
| Enclosure Rating | IP67 |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 200mm x 150mm x 80mm |
| Material | UV-resistant polycarbonate |
Telhua Engineer's Tip
For optimal performance in high-humidity environments, apply a thin layer of dielectric grease to the O-ring seals during installation. This prevents moisture ingress and extends the unit's lifespan by up to 25%, reducing maintenance cycles and total cost of ownership.
Compliance & Standards
This product complies with international standards, including:
- IEC 61753-1 (Environmental performance)
- TIA/EIA-568 (Telecommunications infrastructure)
- RoHS (Restriction of Hazardous Substances)
Applications
Ideal for:
- FTTH (Fiber-to-the-Home) networks
- Outdoor telecom cabinets
- Industrial automation systems
- Surveillance and security networks
Get Started
Contact our team for a customized quote or download the detailed product PDF for specifications and installation guidelines.
