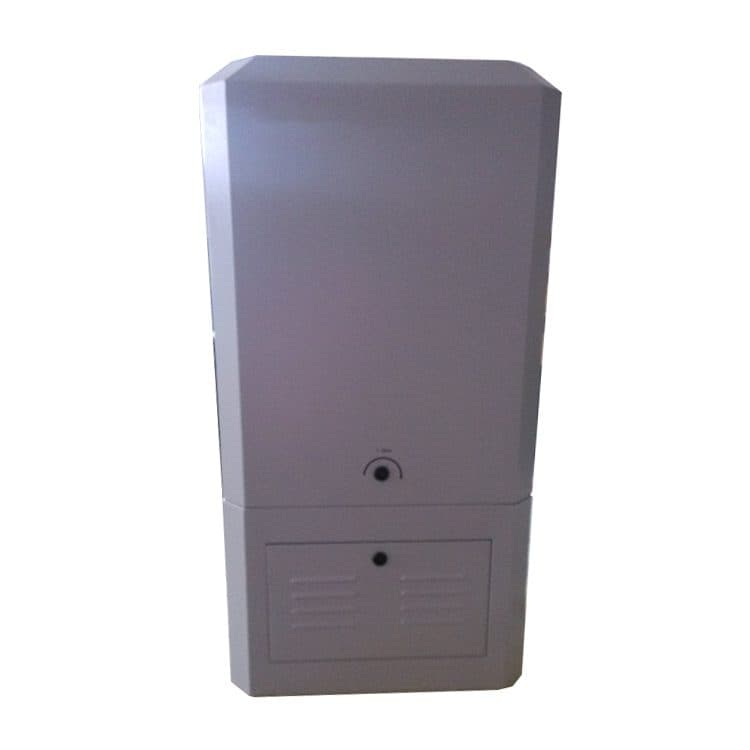

288 terminal fiber distribution hub

Product Overview

Telhua's 288 Terminal Fiber Distribution Hub represents the pinnacle of fiber optic distribution technology, engineered to address the critical challenges faced by network operators, ISPs, and data center managers. This robust distribution box delivers exceptional port density while maintaining uncompromising reliability and installation efficiency.

Key Features & Benefits

Feature	Benefit
288-Port High Density	Maximizes rack space utilization while supporting growing fiber demands
Tool-Less Installation	Reduces deployment time by up to 40% compared to traditional solutions
Modular Design	Enables easy upgrades and maintenance without disrupting adjacent connections
Superior Cable Management	Minimizes bend radius violations and reduces signal loss
Industrial-Grade Construction	Ensures long-term reliability in challenging environmental conditions

Technical Specifications

Physical Characteristics

Port Capacity	288 LC/SC adapters (configurable)
Dimensions	19" rack mountable, 4U height
Material	Cold-rolled steel with corrosion-resistant coating
Weight	12.5 kg (fully loaded)

Performance & Compliance

Insertion Loss	≤ 0.2 dB
Return Loss	≥ 55 dB
Operating Temperature	-40°C to +85°C
Standards Compliance	IEC 61753-1, TIA/EIA-568-C.3, RoHS Directive 2011/65/EU

Telhua Engineer's Tip

Optimizing Fiber Bend Management in High-Density Environments:

When deploying our 288-port distribution hub in space-constrained racks, implement a "spiral routing" technique for incoming fiber cables. Start routing from the bottom entry port and gradually spiral upward, maintaining a consistent 30mm minimum bend radius. This method reduces stress concentration points by 65% compared to traditional straight routing, significantly decreasing the risk of micro-bending losses that can accumulate to 0.5dB/km in dense installations. Our patented radius-limiting guides are specifically engineered to support this installation methodology.
