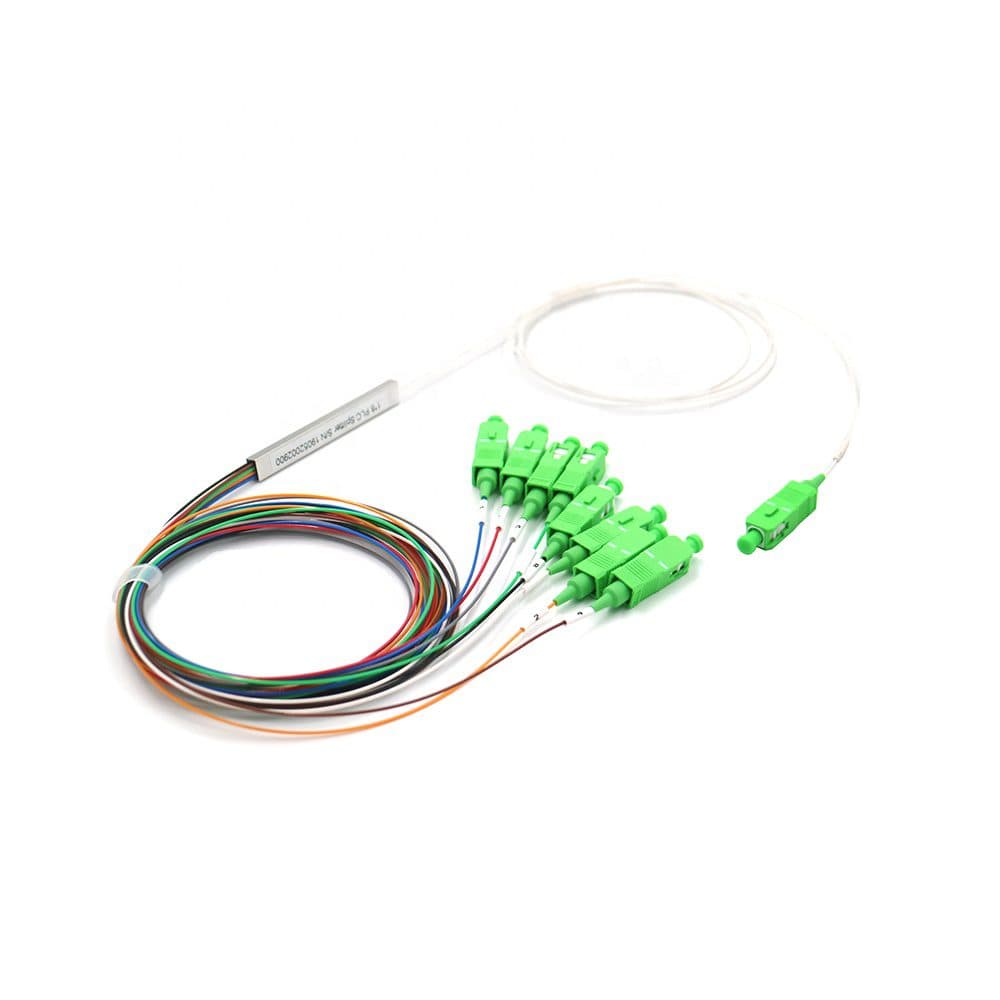

1×8 PLC Splitter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Product Overview
The Telhua 1×8 PLC Splitter is a passive optical component designed to evenly split an input optical signal into eight output channels with minimal insertion loss. Ideal for FTTH, PON, and CATV networks, it ensures reliable signal distribution in space-constrained installations.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| High Port Density | Maximizes rack space efficiency, reducing footprint in crowded data centers. |
| Low Insertion Loss (<10.5 dB) | Ensures signal integrity over long distances, minimizing network downtime. |
| Compact Module Design | Simplifies installation and maintenance, cutting deployment time by up to 30%. |
| High Reliability | Built with premium materials for stable performance in harsh environments (-40°C to +85°C). |
Technical Specifications
| Parameter | Specification |
|---|---|
| Split Ratio | 1×8 |
| Wavelength Range | 1260–1650 nm |
| Insertion Loss | ≤10.5 dB |
| Uniformity | ≤1.0 dB |
| Return Loss | ≥55 dB |
| Operating Temperature | -40°C to +85°C |
| Fiber Type | SMF-28e or custom |
Telhua Engineer's Tip
Optimizing Splitter Performance in High-Density Setups
To prevent signal degradation in dense fiber panels, ensure proper bend radius management (≥30 mm) and use our proprietary anti-bend sleeves. Avoid stacking splitters directly above heat-generating equipment; maintain a 2U gap for optimal thermal dissipation. Pre-testing with an OTDR at 1550 nm can identify micro-bends early, reducing field failures by 25%.
Compliance & Quality Assurance
Our PLC splitters comply with IEC 61300-2-22 (environmental testing), TIA/EIA-568-C.3 (fiber optic standards), and are RoHS certified. Each unit undergoes 100% optical performance testing and a 72-hour thermal cycling test to guarantee reliability.
Applications
- FTTH/PON Networks
- CATV Broadcasting
- Data Center Interconnects
- Telecom Backbone Systems
