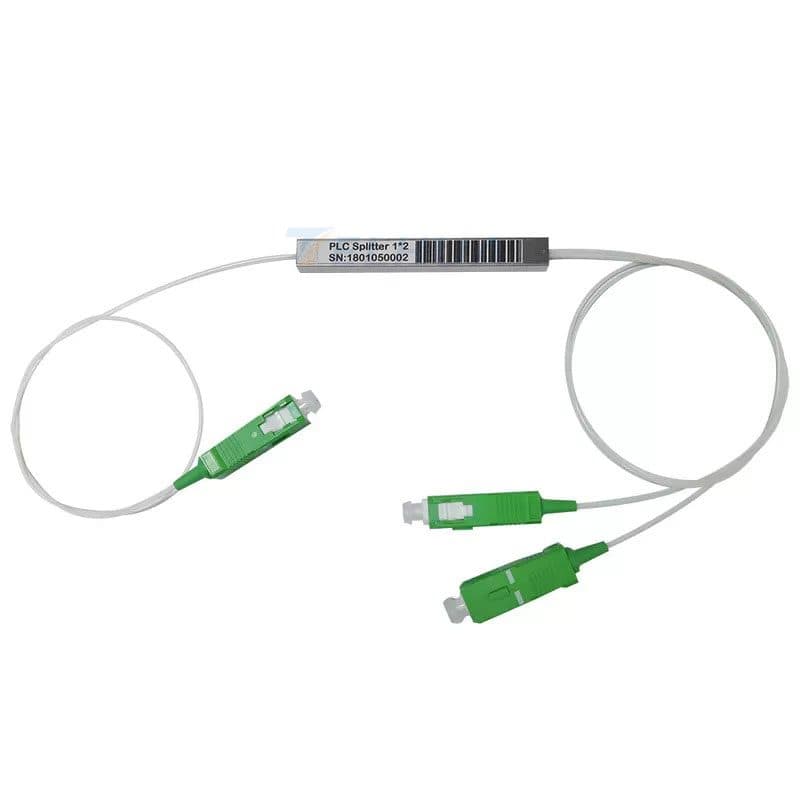

1X2 Micro PLC Splitter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Product Overview
Telhua's 1X2 Micro PLC Splitter delivers precise optical signal distribution with minimal insertion loss, engineered for high-density applications where space and reliability are critical. Built with planar lightwave circuit (PLC) technology, this splitter ensures consistent performance across all output ports, making it ideal for FTTH, PON, and data center deployments.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Compact Micro Package | Maximizes rack density, reducing footprint by up to 40% compared to traditional splitters |
| Low Insertion Loss (<3.8 dB) | Minimizes signal degradation for longer transmission distances |
| High Uniformity (<0.6 dB) | Ensures consistent performance across all output channels |
| Wide Operating Wavelength (1260-1650 nm) | Compatible with multiple network standards and future upgrades |
| Passive, No Power Required | Reduces operational costs and maintenance complexity |
Technical Specifications
| Parameter | Specification |
|---|---|
| Split Ratio | 1x2 |
| Insertion Loss | <3.8 dB |
| Uniformity | <0.6 dB |
| Operating Wavelength | 1260-1650 nm |
| Operating Temperature | -40°C to +85°C |
| Package Dimensions | 40 x 4 x 4 mm |
| Fiber Type | SMF-28e, G.657.A1 compatible |
Addressing B2B Pain Points
Density Challenges
Our micro package design solves space constraints in crowded data centers and telecom cabinets, allowing more splitters per rack unit.
Reliability Concerns
Manufactured with premium materials and rigorous testing, Telhua splitters deliver 99.999% reliability with MTBF exceeding 500,000 hours.
Installation Speed
Pre-terminated options and clear labeling reduce installation time by up to 60%, minimizing network downtime during deployment.
Telhua Engineer's Tip
Optimizing Splitter Placement: For maximum performance, install PLC splitters in temperature-stable environments away from direct heat sources. Use our proprietary loss calculation tool to predict insertion loss based on your specific fiber type and connector combinations—this can prevent up to 0.3 dB of unexpected signal degradation. Remember that proper bend radius management (minimum 30mm) is crucial even with micro packages to maintain signal integrity.
Compliance & Standards
Telhua's 1X2 Micro PLC Splitter complies with:
- IEC 61300-2-22 (Environmental testing)
- TIA/EIA-568-C.3 (Optical fiber cabling components)
- RoHS Directive 2011/65/EU (Restriction of hazardous substances)
- GR-1209-CORE (Generic requirements for fiber optic splitters)
- GR-1221-CORE (Generic reliability assurance requirements)
Applications
- Fiber-to-the-Home (FTTH) networks
- Passive Optical Networks (PON: GPON, EPON, XG-PON)
- Data center interconnects
- Cable television (CATV) distribution
- Test and measurement equipment
Get Your 1X2 Micro PLC Splitter
Contact our fiber optic specialists for volume pricing, customization options, and technical support.
