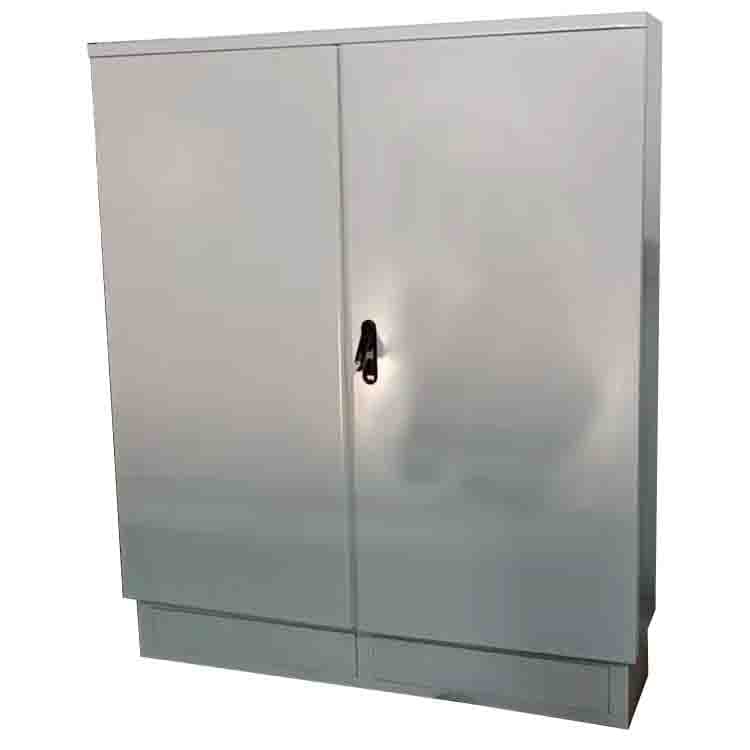

19inch outdoor fiber distribution hub

Optimize Your Network with Precision Fiber Distribution

Telhua's 19-inch outdoor fiber distribution hub is designed to address the critical challenges faced by network operators and installers. This robust enclosure provides secure, organized, and reliable fiber optic termination and distribution, ensuring optimal performance in harsh outdoor conditions.

Key Features & Benefits

Feature	Benefit
High-Density Design	Maximizes port capacity in a compact 19-inch footprint, saving space and reducing installation complexity.
IP65 Rated Enclosure	Provides complete protection against dust and water ingress, ensuring long-term reliability in outdoor settings.
Tool-Less Access	Speeds up installation and maintenance, reducing labor costs and network downtime.
Modular Adapter Panels	Allows flexible configuration for LC, SC, or other connector types, adapting to your specific network requirements.
Integrated Cable Management	Organizes and protects fiber cables, minimizing bend radius issues and signal loss.

Technical Specifications

Physical Dimensions

Standard 19-inch rack-mountable design
Height: 1U, 2U, or 4U options available
Material: Powder-coated steel with UV-resistant finish

Environmental Ratings

IP65 protection rating
Operating temperature: -40°C to +75°C
Humidity: 5% to 95% non-condensing

Compliance & Standards

This fiber distribution hub complies with international standards including IEC 61753 for environmental performance, TIA/EIA-568 for structured cabling, and is RoHS compliant for environmental safety.

Telhua Engineer's Tip

For optimal performance in high-vibration environments (e.g., near railways or industrial zones), use our anti-vibration mounting kit (sold separately). This reduces micro-bend losses by up to 0.2 dB per connection, significantly improving signal integrity over time. Pre-installation environmental testing at -40°C is recommended to verify seal integrity before deployment.
