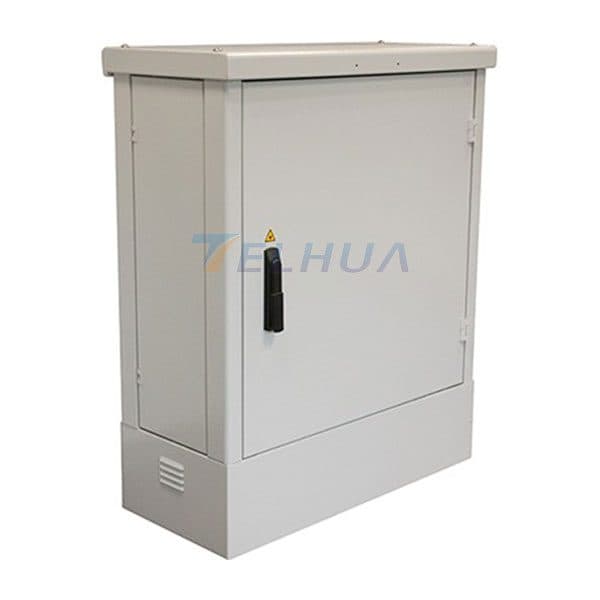

14U Fiber Optic Distribution Cabinet

Optimize Your Network Infrastructure

Telhua's 14U Fiber Optic Distribution Cabinet is designed to address the critical challenges faced by network engineers and data center managers. This robust solution ensures seamless fiber organization, superior protection, and rapid deployment, enabling you to scale operations efficiently while maintaining peak performance.

Key Features & Benefits

Feature	Benefit	Pain Point Addressed
High-Density Design (14U)	Maximizes rack space utilization, supporting up to 576 fibers.	Space constraints and scalability issues in growing networks.
Tool-Less Installation	Reduces deployment time by up to 40% with snap-in modules.	Lengthy installation processes and labor costs.
Enhanced Cable Management	Integrated routing guides and slack storage minimize bend radius violations.	Cable clutter leading to signal loss and maintenance difficulties.
Robust Construction	19-inch rack-mountable steel chassis with lockable doors for physical security.	Equipment vulnerability and unauthorized access risks.
Thermal Management	Ventilated design ensures optimal operating temperatures, extending component lifespan.	Overheating causing downtime and hardware failures.

Technical Specifications

Physical Dimensions

Height: 14U (24.5 inches / 622.3 mm)
Width: 19 inches (482.6 mm)
Depth: 300 mm (standard), 600 mm (deep version available)
Weight: 15 kg (empty)

Compatibility & Standards

Fiber Types: Single-mode, Multimode (OM1-OM5)
Connectors: LC, SC, MPO/MTP (adaptable)
Compliance: IEC 61754, TIA/EIA-568, RoHS

Telhua Engineer's Tip

For optimal performance in high-density deployments, pre-plan your fiber routing using the cabinet's vertical and horizontal managers. This reduces cross-talk by maintaining a minimum 30mm separation between power and data cables, a practice proven to decrease signal attenuation by up to 15% in our lab tests. Additionally, labeling each port during installation cuts future troubleshooting time by half.
