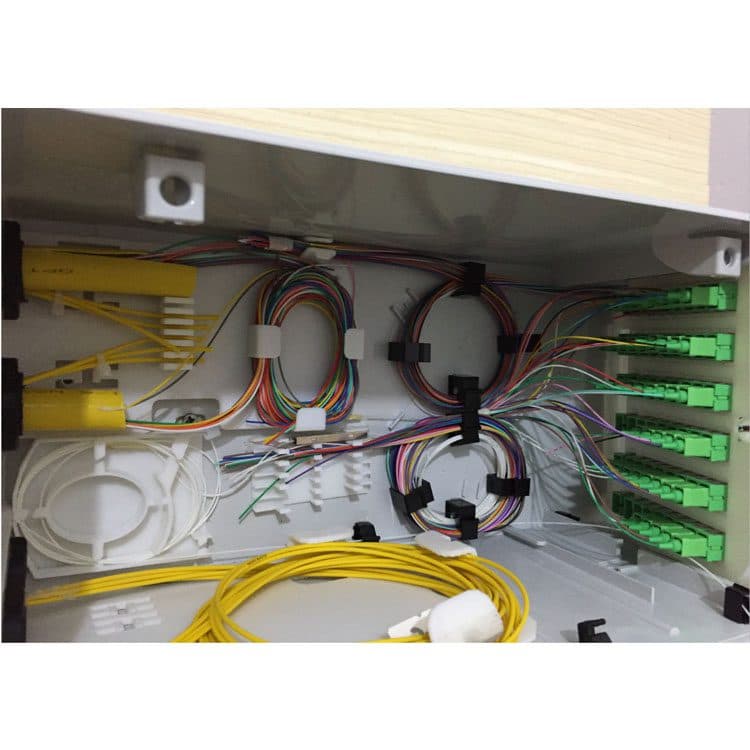

CM-ROE-48 48fo Compact Modular ROE–ROE MODULARE COMPATTO
• Can accommodate up to six pre-connectorized splitters (1x4, 1x8, 1x16) for joining customer cables.
• The unit is supplied with 4 SE splicing trays.
• The cable is fixed through the left side of the unit.
• User cables (multi fiber or single fiber) come out from the top or bottom of the unit.
• The ROE allows the connection, splicing, branching and storage of optical fibers from building and network cables.
• Building cables are terminated on request with field mountable connectors on the right side
patch panel. A 12-position parking area is located on the right side of the patch panel for
disconnected connectors.
• A 6-position patch panel is located on the main cover
• The right side cover provides access to the building wire connectors. In this area, the upper and lower walls are removable, allowing intercommunication between the modules.
• The doors are opened for the Telecom Italia "unified" key.
• 4 tbolar protections for the input cables are placed on the left side of the module.
• The module is IP51, light gray, RAL 7035.
• A metal mounting bracket is available to ensure proper alignment of the modules.
CM-ROE-48 48fo Compact Modular ROE–ROE MODULARE COMPATTO
l Multi-operator cabinet with six trays and capacity for 48 fibers.
l Allow the connection between multiple operators and clients, allows the connection through panels or directly by splices.
l The flexible side entrance that allows to stack several boxes and an oval entrance that facilitates the bleeding of the cable. Fire resistant that allows splicing, patching, dividing or storing optical fibers, equipped with an 8mm male triangular closing wrench.
l It has a central area to organize the fibers which is protected with a main door.
l It has compartments separated by a distribution panel of up to 48 optical fibers and allows the installation of the cables by means of fusion or direct connection.
l Possibility of scalability according to the number of operators that address the building
l Standardized dimensions, according to the recommendations of TELEFÓNICA, approved for the main operators.
Description:
The CM ROE 48 is an optical distribution box for Fiber To The Home applications with a capacity of up to 48 splices.
CM ROE 48 - Telecom Italia Regulation 968, NMU 767700 - is the interconnection point between the fibers coming from the secondary optical network (FTTH) and those of the vertical cabling towards the Real Estate Units.
The optical splitter is positioned inside it to create the FTTH point-to-multipoint NGAN network.
It can house four splice boards that allow up to 48 splices. The ROE is supplied with 8 SC / APC Simplex adapters.
The ROE is an optical distribution box typically used in MDUs, for connecting building cables with network cables, via optical splitters. The unit can accommodate up to six splitters up to the 1x16 configuration.
Comes with 4 SE splice trays.
This provides a total capacity of 48 fusion splices.
The right side offers the possibility to connect the fibers of the building cables
(terminated with field mountable connectors) to the modules of other operators that
are installed in an upper or lower position.
Compliant with technical specification TIM 968 and to the "technical standard for the installation of Building Optical
Splitter Boxes (ROE) in the Fiber To The Home (FTTH) network for FLASH FIBER, NMU 767700.
Application:
1. Telecommunication area.
2. Internet service.
3. Data center, CATV
4. FTTH
Features:
- 6 positions for splitter sectioning
- Supplied with 4 splice boards guaranteeing a total capacity of 48 splices
- Up to 4 input cables
- cable glands suitable for bonding corrugated cable protection sheaths
Up to 48 outputs - Parking area for 12 connectors. Equipped with safety lock key.
- Protection degree IP51
- Compliant with Telecom Italia 968 regulations
- Can accommodate up to six pre-connectorized splitters (1x4, 1x8, 1x16) for joining customer cables.
- The unit is supplied with 4 SE splicing trays.
- The cable is fixed through the left side of the unit.
- User cables (multi fiber or single fiber) come out from the top or bottom of the unit.
- The ROE allows the connection, splicing, branching and storage of optical fibers from building and network cables.
- Building cables are terminated on request with field mountable connectors on the right side patch panel.
- A 12-position parking area is located on the right side of the patch panel for disconnected connectors.
- A 6-position patch panel is located on the main cover
- The right side cover provides access to the building wire connectors. In this area, the upper and lower walls are removable, allowing intercommunication between the modules.
- The doors are opened for the Telecom Italia "unified" key.
- 4 tbolar protections for the input cables are placed on the left side of the module.
- The module is IP51, light gray, RAL 7035.
- A metal mounting bracket is available to ensure proper alignment of the modules.
Specification:
Dimension |
450x180x150mm |
Net Weight |
3.2kg |
Splice tray |
6pcs |
Max Capacity |
48core |
Adapter Plate Capacity |
48 SC Simplex |
Dividers |
Max 4pcs 1:16 Splitter |
Color |
Grey RAL 7035 |
Working Temperature |
-25°C - 60°C (5 to 95% relative humidity) |
Accessories:
1. 1x Installation Manuel
2. 3x300mm cable tie
3. 24x100mm plastic cable tie
4. 1x wall fixing kit
5. 48x fiber splice protector
6. 1mx fiber protect tube.
7. 1x Triangular Key

CM-ROE-48 48fo Compact Modular ROE–ROE MODULARE COMPATTO-1

CM-ROE-48 48fo Compact Modular ROE–ROE MODULARE COMPATTO-1

CM-ROE-48 48fo Compact Modular ROE–ROE MODULARE COMPATTO-1
