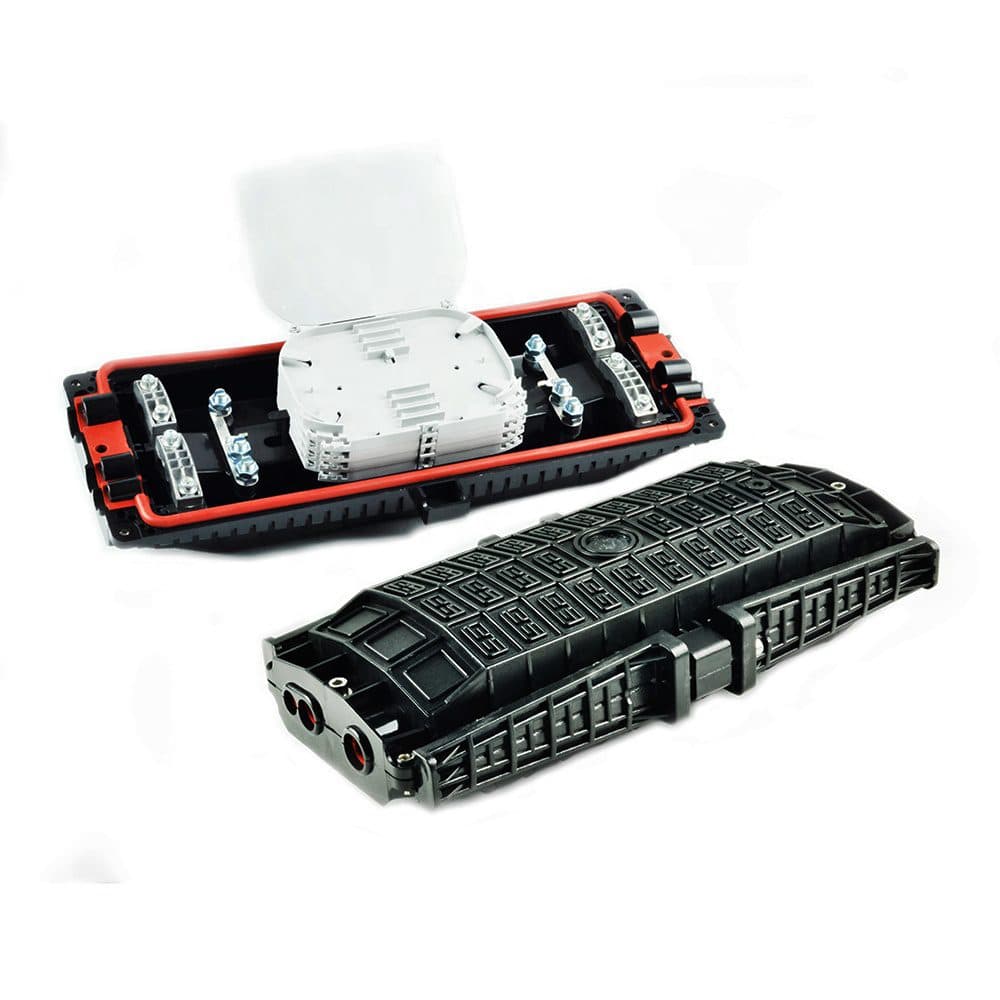

96 Core Horizontal Inline Splice Closure Fiber Optic Enclosure Joint Box
* The box has a pothook, which is convenient to install and dismantle
* The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be
guaranteed to be over 37.5mm in the splice tray
* The box is of unique structure, reasonable layout, and has adequate room for operation
* Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
* The indoor type is of excellent seal performance, which could prevent water from entering effectively
* Can be installed with LC adapter
* Up to 12 cores splice capacity
* Sliding design
- Model Number:FSC-18
- Place of Origin:Guangdong, China
- Brand Name:TELHUA
- Product Name:Fiber Optic Joint Closure
- Material:PC ABS
- Outside dimension (LxWxH):450x220x110(mm)
- Weight (excluding outside box):2750g-3200g
- Number of inlet/outlet ports:3(pieces)oneachside(total6pieces)
- Diameter of fiber cable:8-23(mm)
- Capacity of FOSC:Bunchy:6-96(Cores) Ribbon:max.216(Cores)
- temperaturerange:-40 to +65℃
- Supply Ability:10000 Piece/Pieces per Week
- Packaging Details
- Standrad Carton
- Port
- Shenzhen
- Lead Time :
-
Quantity(Pieces) 1 - 100 101 - 1000 >1000 Est. Time(days) 3 7 To be negotiated
96 Core Horizontal/ Inline Splice Closure Fiber Optic Enclosure/ Joint Box
1. Scope of application
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65℃.
2. Basic structure and configuration
2.1 Dimension and capacity
Outside dimension (LxWxH) | 450x220x110 (mm) |
Weight (excluding outside box) | 2750g-3200g |
Number of inlet/outlet ports | 3 (pieces) on each side (total 6 pieces) |
Diameter of fiber cable | Φ8—Φ23 (mm) |
Capacity of FOSC | Bunchy: 6—96 (Cores)
Ribbon: max. 216 (Cores |
2.2 Main components
No. | Name of
components |
Quantity | Usage | Remarks |
1 | Housing | 1 set | Protecting fiber cable splices in
whole |
Internal diameter:
378x136 (mm) |
2 | Insert plate | 2 pairs | Fixing the housing | 175x56x30(mm) |
3 | Fiber optic splice tray (FOST) | Max 4 pieces (either bunchy or ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:6,12,24(cores) Ribbon:3,6 (pieces) |
4 | Foundation | 1 set | Fixing reinforced core of fiber-cable and FOST | |
5 | Seal fitting | 1 set | Sealing between FOSC cover
and FOSC bottom |
|
6 | Port plug | 6 pieces | Sealing empty ports | |
7 | Pressure testing valve | 1 set | After injecting air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
8 | Earthing deriving
device |
1 set | Deriving metallic components of fiber cable in FOSC for earthing connection |
Configuration as per requirement |
3.3 Main accessories and special tools

96 Core Horizontal Inline Splice Closure Fiber Optic Enclosure Joint Box

96 Core Horizontal Inline Splice Closure Fiber Optic Enclosure Joint Box
FAQ
1.Why choose TELHUA ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2.Do you accept OEM,ODM?
Yes, we accept them .
3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4.What’s the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5.What’s the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Inquiry Now
