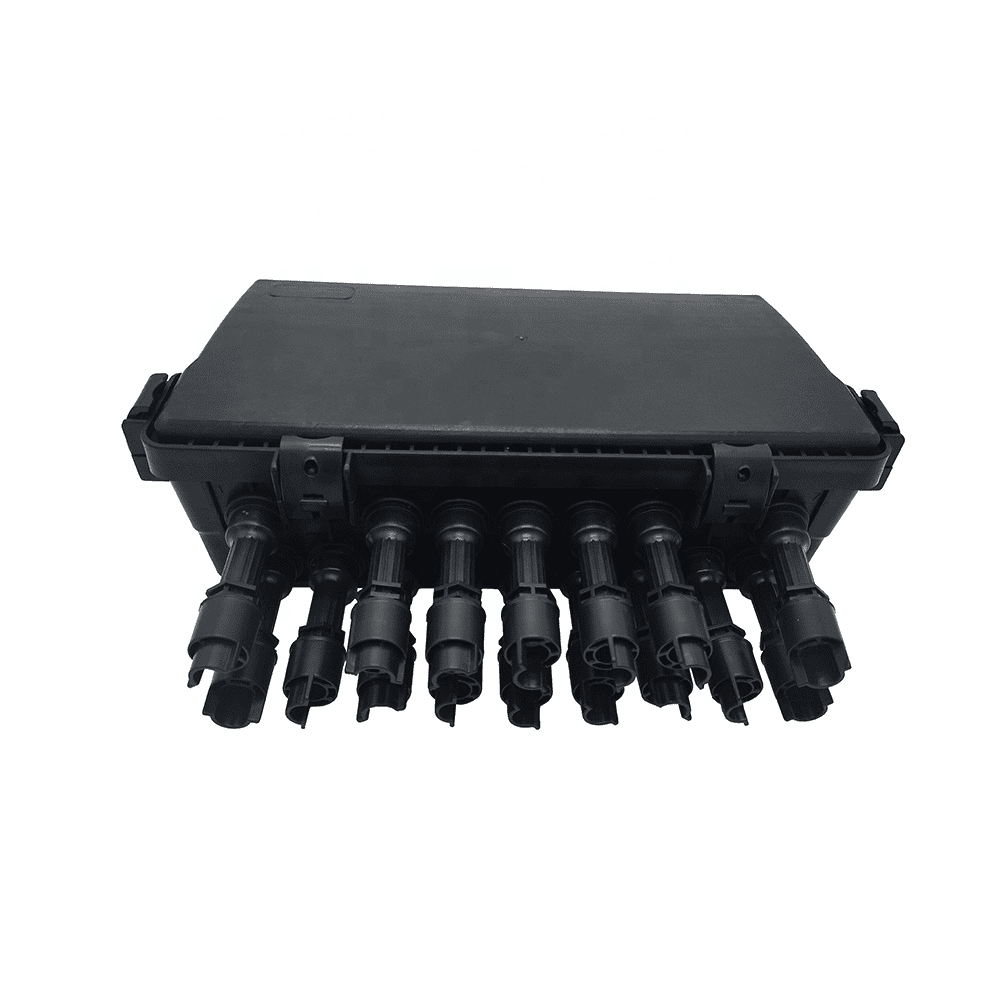

16 core Fast Connector Exit Optic Splice Closure with Splitter and Adapter Holder

Price: $6.65 - $7.95/Piece

1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
4. The splice trays are hinged for access to any splice tray, without disturbing other trays.
5. The inner parts and fixing parts are made of stainless steel
6. With a earthing device protect it from damage by lightning
7. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)

Inquire Now

Product Details

Overview

Quick Details

Place of Origin:Guangdong, China

Brand Name:TELHUA

Model Number:FSC-11

No. of Fiber:16

Max Capacity:16, 48 fibers 24F/Tray

Dia.(mm) Biggest Point:359*277*120

No. Of Ports:2pcs round on both side: for 8-12mm 16pcs fast connector ports

Available Splitter:1pc 1*16 or 2pcs 1*8 Mini PLC Splitter

Max. Adapter Number:14

Dome & base:Modified P.P+GF

Tray:ABS

Type:Racks & Enclosure

Use:FTTH

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Week

Lead Time :

Quantity(Pieces)	1 - 100	101 - 500	>500
Est. Time(days)	7	15	To be negotiated

Product Description

16 core Fast Connector Exit Optic Splice Closure with Splitter and Adapter Holder

Description:
FSC-11 is used to splice cable with max. 12.5 mm dia. and allow 16 pcs drop cable with fast connector exit. Adopt engineering plastic in scientific formula with excellent mechanical strength, can prevent aging effectively caused by cold, hot, oxygen, UV etc. Can splice and connect the optic fibers in aerial, pole or wall mounting environment. Reliable sealing performance, convenient for repeated use.

Features:
Ingress Protection: IP65
Seal with silicon rubber ring at the closure body and entry ports. Adopt plastic clip type lock for easy reopen and maintenance
Provide 4 pcs 12~24F entry port block and sealing tape for flexible application. Guarantee a reliable and practical seal
performance of the entry ports
Adapter number: max hold 16pcs simplex SC installation sized adapters.
Splitter:Available for 1pc 2:16 or 2 pcs 1:8 micro PLC splitter's adapters
All the metal part use Stainless Steel material.
Advantage of fast connector exit: No need to open the closure for adjusting the signal. Only plug the fast connectors to adjust. More convenience.

Main Technical Index:
Available optic fiber bending radius :≥37.5 mm
Excessive loss fiber length :≥1.6 m
Max splice capacity: 48 F (single fiber)
Working Temperature:-40ºC~+70ºC
Lateral pressure resistance:≥2000N/10cm
Impact resistance :≥20N.m

Model	SP-GJS03L-16C
Dia.(mm) Biggest Point	359277120
Max Capacity	48 fibers 24F/Tray
No. Of Ports	2pcs round on both side: for 8-12mm 16pcs fast connector ports for drop cable
Available Splitter	1pc 116 or 2pcs 18 Mini PLC Splitter
Max. Adapter Number	16
Mechanical sealing with silicon rubber and Clip type lock
